Stanley Press Equipment Ltd

Reconditioned Gietz Systems

Reconditioned Gietz FSA Foil Stamping Presses

Stanley Press Equipment Ltd are the worlds leading suppliers of fully reconditioned Gietz foil stamping, embossing and die cutting machines. Machines offered reconditioned or fully serviced by Stanley Press Equipment Ltd, exclusive distributor for Gietz AG in the UK & Ireland. Specification details given for the purposes of guidance and to be verified by the purchaser.

All machines undergo pre-despatch testing on 80 gsm Chromolux paper. All machines come equipped with 1 x used honeycomb and die fixing clips. A die cutting chase and additional honeycombs can be supplied at additional cost if required.

We are able to offer a service for installation, commissioning and training (in English language) if required at additional charge. Machines are offered subject to intermediate sale.

We would be delighted to discuss your requirement with you and please contact us for any further information.

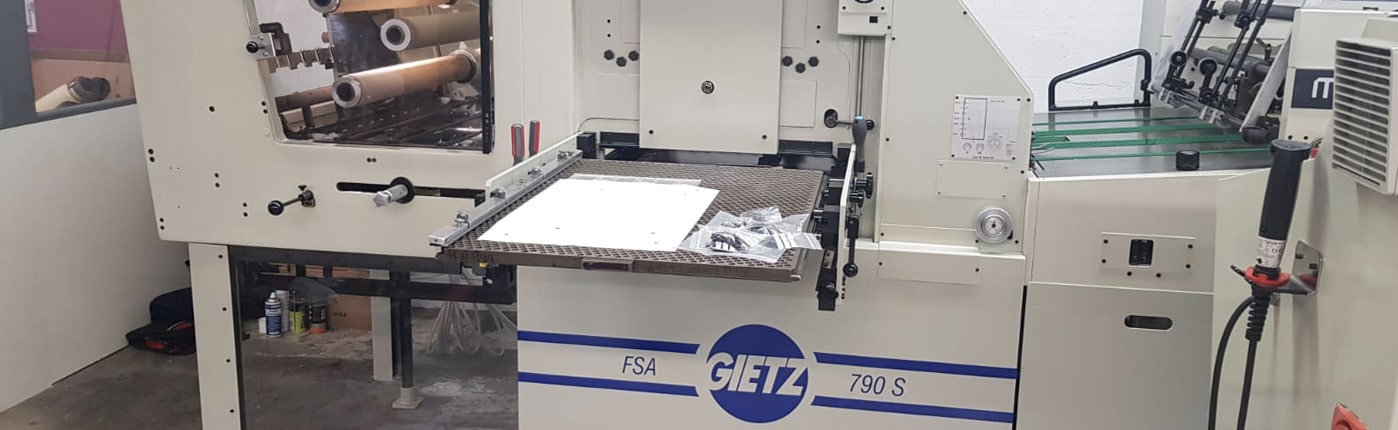

Gietz FSA 790 S Hot Foil Stamping , Embossing and Die Cutting machine : year 1998

(Fully Reconditioned)

Offered reconditioned by us as exclusive UK distributor for Gietz AG , Switzerland

  • Maximum sheet size 790 x 560mm

  • Minimum sheet size 297 x 210mm

  • Maximum stamping area 720 x 520mm

  • Speed up to 5,500/ hr

  • Thermostat adjustable up to 200 deg C

  • 3 Longitudinal electronically controlled servo foil advances

  • 3 Line Hologram capability

  • Maximum foil width longitudinal 725mm

  • Maximum foil diameter 1″ core 160mm

  • Pile height max 950mm

  • Pile weight up to 700kg

  • 6 zone heating

  • Total capacity of motors 25 KVa

  • Heating capacity 9.0kW

  • Net weight of complete machine 7000kgs

  • Floor space, including control console, approx 4.3m x 3.6m

  • Height of machine 1.9m

  • Air pressure – to be provided by the customer (50 Nqm: 7-10 bar constant)

Included with the machine are:

  • High speed MABEG feeder

  • 3 x Longitudinal electronically controlled servo foil pulls

  • 1 x Honeycomb

  • Standard delivery

Gietz FSA 790 EFF Hot Foil Stamping , Embossing and Die Cutting machine : year 1997

(Fully Reconditioned – picture shows Machine installed in production – now in our factory)

Offered reconditioned by us as exclusive UK distributor for Gietz AG , Switzerland

  • Maximum sheet size 790 x 560mm

  • Minimum sheet size 297 x 210mm

  • Maximum stamping area 720 x 520mm

  • Speed up to 5,500/ hr

  • Thermostat adjustable up to 200 deg C

  • 3 x Longitudinal electronically controlled servo foil advances

  • 3 Transverse foil feds

  • 3 line Hologram capability

  • Maximum foil width longitudinal 725mm

  • Maximum foil diameter 1″ core 160mm

  • Pile height max 950mm

  • Pile weight up to 700kg

  • 6 zone heating

  • Total capacity of motors 25 KVa

  • Heating capacity 9.0kW

  • Net weight of complete machine 7000kgs

  • Floor space, including control console, approx 4.3m x 3.6m

  • Height of machine 1.9m

  • Air pressure – to be provided by the customer (50 Nqm: 7-10 bar constant)

Included with the machine are:

  • High speed MABEG Feeder

  • 3 x Longitudinal electronically controlled servo foil pulls

  • 3 Transverse foil pulls

  • 1 x Honeycomb

  • Non-stop delivery

Gietz FSA 790 EFF Hot Foil Stamping , Embossing and Die Cutting machine : year 1995

(Fully Reconditioned – picture shows Machine installed in production – now in our factory)

Offered reconditioned by us as exclusive UK distributor for Gietz AG , Switzerland

  • Maximum sheet size 790 x 560mm

  • Minimum sheet size 297 x 210mm

  • Maximum stamping area 720 x 520mm

  • Speed up to 5,500/ hr

  • Thermostat adjustable up to 200 deg C

  • 3 x Longitudinal electronically controlled servo foil advances

  • 3 Transverse foil feds

  • Maximum foil width longitudinal 725mm

  • Maximum foil diameter 1″ core 160mm

  • Pile height max 950mm

  • Pile weight up to 700kg

  • 6 zone heating

  • Total capacity of motors 25 KVa

  • Heating capacity 9.0kW

  • Net weight of complete machine 7000kgs

  • Floor space, including control console, approx 4.3m x 3.6m

  • Height of machine 1.9m

  • Air pressure – to be provided by the customer (50 Nqm: 7-10 bar constant)

Included with the machine are:

  • High speed MABEG Feeder

  • 3 x Longitudinal electronically controlled servo foil pulls

  • 1 x Honeycomb

  • Non-stop delivery
